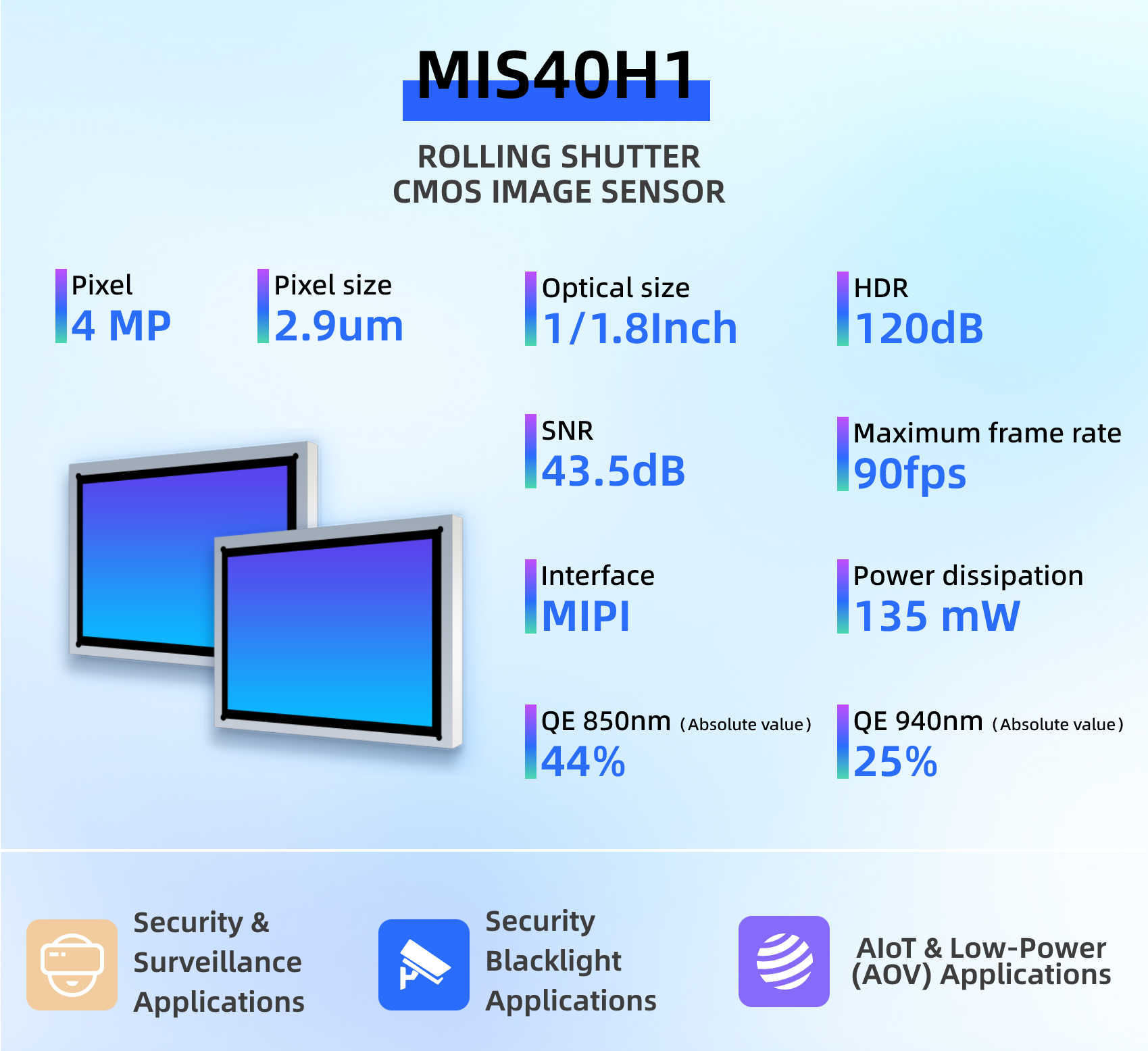

Recently, Chengdu Image Design Technology launched its new Black Light Full-Color 4MP Image Sensor—MIS40H1. Built on the company’s proprietary "BSI+™" technology platform and "ApexPixel®" pixel technology, the sensor integrates fully self-developed core technologies such as FDTI™, ImgAOV™, and PixHDR™. It delivers high sensitivity, high dynamic range (HDR), high-temperature imaging stability, and low power consumption, while supporting Always-On Video (AOV) functionality. These advancements enable real-time, stable full-color imaging across all scenarios, meeting the stringent requirements of ultra-low-light security systems and AIoT low-power (AOV) applications.
01
High Dynamic Range (HDR), High Signal-to-Noise Ratio (SNR), and High Sensitivity
The MIS40H1 excels with high dynamic range (HDR), high signal-to-noise ratio (SNR), and outstanding sensitivity, achieving a remarkable sensitivity of 11.7 V/lux·s. Even in ultra-low-light environments as dim as 0.01 lux, the MIS40H1 efficiently captures faint light signals. Combined with a 43.5 dB SNR for deep noise suppression, it significantly enhances image purity in low-light conditions, delivering clear and detailed visuals. Additionally, its 120dB dynamic range ensures accurate reproduction of both shadow and highlight details in high-contrast scenarios (e.g., backlighting or intense light gradients). Leveraging multi- synthesis technology, the MIS40H1 rapidly performs multi-exposure capture and image fusion in complex lighting environments, precisely restoring intricate details.
02
Image Preprocessing Functions
The MIS40H1 features built-in Fast AE/AWB, dark current correction, sunspot removal, and defective pixel correction to significantly enhance image quality. Its Fast AE/AWB function enables rapid exposure time and color balance adjustments under various lighting conditions, ensuring sharp images with accurate colors for an exceptional image capture experience.
03
Supports AOV functionality
The MIS40H1 integrates AOV functionality combined with Fast AE technology to achieve the perfect balance between ultra-low power consumption and fast response. The sensor's standby power consumption is only 1.08mW, while operating power consumption in 30fps linear mode is just 135mW. Through Fast AE's intelligent exposure control, the MIS40H1 achieves an average AOV power consumption as low as 5.83mW in 90fps high rate mode, significantly improving dynamic scene fluidity and energy efficiency. The AOV function enables the sensor to synchronize with the main control chip during system startup, dramatically reducing the time from startup to stable image output and ensuring rapid device response. In long-exposure or low-power scenarios, AOV allows the main control chip to enter sleep mode while the sensor autonomously completes exposure via Fast AE and wakes the main control as needed to receive data, substantially reducing system power consumption, extending device battery life, further enhancing image quality and energy efficiency, thereby enabling 24/7 full real-time video recording.
04
NIR-enhanced technology significantly improves night vision clarity
The MIS40H1 delivers outstanding near-infrared performance with high sensitivity and broad spectral response. It achieves quantum efficiency (QE) of 44% at 850nm and 25% at 940nm, enabling clear and detailed image capture in complete darkness. Furthermore, its spectral response covers both visible and near-infrared bands, ensuring seamless day-night transition with excellent image consistency.
High-temperature environmental testing
MIS40H1
（High-Temperature Performance in Low-Light Conditions (80°C)）
Industry Comparable Products
（High-Temperature Performance in Low-Light Conditions (80°C)）
In comparative testing under 80°C high-temperature and low-light conditions, the MIS40H1 outperforms industry counterparts in noise control, local detail clarity, and high-temperature stability. It reliably delivers clear, stable, high-quality images under extreme heat - free from thermal noise or color shift - meeting demanding environmental imaging requirements.。
Outdoor Low-Illumination Testing
MIS40H1
（Outdoor Low-Light Performance）
Industry Comparable Products
（Outdoor Low-Light Performance）
In comparative outdoor low-light testing, the MIS40H1 outperforms industry counterparts with equivalent specifications in light sensitivity, noise control, local detail reproduction, and color accuracy. This ensures the sensor delivers high-quality images with exceptional clarity, natural colors, and refined details even in extremely dark environments.
Outdoor Night Vision Smearing Test
The MIS40H1 delivers outstanding performance in night vision and dynamic scenes. Leveraging DOL3 exposure mode, high rate output (90fps), and intelligent ISP algorithms, it effectively minimizes motion blur, ensuring sharp and clear imaging of moving targets for a smoother, more lifelike visual experience.
